What Is a Wooden Truss Bridge?

Types, Benefits & Drawbacks

What Is a Wooden Truss Bridge? Types, Benefits & Drawbacks

Wooden truss bridges have spanned rivers and valleys for centuries, showcasing structural ingenuity and the warmth of natural timber. At its core, a wooden truss bridge depends on a network of triangular timber members—chords, posts, and braces—that work together to carry loads over distances once thought impossible. Beyond their practical role, these structures continue to inspire: from the iconic covered crossings of the 19th century to pedestrian walkways that thread through parks and nature reserves.

These bridges’ appeal stems from multiple strengths. Timber’s renewability and relatively low environmental footprint support sustainable design. Visually, the rhythmic geometry of a truss brings both elegance and a sense of craftsmanship. For small to medium spans, wood often proves more cost-effective than steel or concrete. And when heritage structures remain in service, maintaining or reconstructing wooden trusses honors a legacy of early engineering achievement.

For anyone designing a new footbridge or overseeing the restoration of a historic crossing, understanding wooden truss bridges provides both practical guidance and historical perspective. Ahead, we’ll define what makes a wooden truss bridge unique and examine its essential components. We’ll trace the evolution from Andrea Palladio’s first written descriptions to modern engineered timber products. You’ll explore key truss patterns—Kingpost, Howe, Pratt, Warren, Town lattice—and learn how wood species, connection methods, and construction techniques influence performance. We’ll also outline maintenance and inspection strategies, weigh the benefits and challenges, and cover rehabilitation standards, emerging innovations, and real-world applications to help you plan your next project with confidence.

What Defines a Wooden Truss Bridge and Its Key Components

A wooden truss bridge is a span that leans on a framework of timber members arranged in a series of rigid triangles. By harnessing the inherent strength of triangles—shapes that resist distortion under load—these bridges distribute weight evenly from the deck into the supports. Timber serves as the primary construction material, prized for its workability, aesthetic warmth, and ability to handle both tension and compression when sized correctly.

Although the concept of a truss is straightforward, the intricacies of how individual members interact can get quite technical. If you want a foundational overview, the entry on truss bridge fundamentals is an excellent starting point. In practice, designers must balance geometry, wood species, connection type, and expected loads to arrive at a structure that’s both strong and durable.

Below, we’ll break down the definition of a truss, explore the main structural members, compare traditional joinery with modern connectors, and look at how wood’s physical properties guide every decision—from the length of a chord to the choice of preservative treatment.

Definition of a Truss in Bridge Engineering

A truss is a framework of straight elements joined at their ends to form a series of connected triangles. Each triangle acts as a stable unit: when a load is applied, the forces travel in straight lines through the members, either pulling (tension) or pushing (compression). This direct transfer of force minimizes bending moments and allows a bridge to span greater distances with less material than a solid beam would require.

Key Structural Members: Chords, Verticals, and Diagonals

  • Top Chord: Typically under compression, this horizontal member crowns the truss and resists buckling.
  • Bottom Chord: Under tension, the lower horizontal element holds the span together and carries the deck’s weight.
  • Vertical Posts: These members connect chords and carry vertical loads, often experiencing compression or tension depending on the truss pattern.
  • Diagonal Braces: Diagonals manage shear forces, channeling live loads back to the supports. In some designs they carry compression; in others, tension.

Each member’s role is determined by the truss layout. For example, in a Howe truss, diagonals angle toward the center and act in compression, while verticals are tensioned with metal rods.

Connection Methods: Traditional and Modern

Traditional timber joinery relies on mortise-and-tenon or tenon-and-peg joints, where a projecting “tenon” fits snugly into a hollowed “mortise.” These joints provide strong, long-lasting connections but demand skilled carpentry and precise cutting.

Modern techniques often use steel connector plates, bolted gusset plates, or pinned bearings. Bolted connections speed assembly and allow for easier adjustments on site. Pinned joints introduce a hinge-like action, accommodating slight rotations under load but requiring careful detailing to prevent wear.

Each approach has trade-offs. Traditional joinery blends seamlessly with historic aesthetics, while metal connectors simplify construction and inspection.

Influence of Wood Characteristics on Design

Wood varies widely in strength, stiffness, and durability. Key properties include:

  • Modulus of Elasticity: Measures stiffness; higher values mean less deflection under load.
  • Density: Heavier species usually carry greater loads but can increase dead weight.
  • Decay Resistance: Naturally durable species or properly treated timber stands up to moisture and pests.

Designers match member dimensions to these properties. A high-stiffness chord can be slimmer, reducing material cost, while a decay-resistant species might be chosen for critical, hard-to-inspect connections. Grain orientation also matters: aligning fibers with the primary load path maximizes strength and reduces the chance of splitting under stress.

Historical Development of Wooden Truss Bridges

Wooden truss bridges boast a lineage that stretches back to Renaissance Europe and flourished in 19th-century America. Early experiments laid theoretical groundwork, but it was the demand for reliable, economical crossings in a young United States that propelled truss design into its golden age. Over time, builders refined simple post‐and‐beam configurations into patented systems that combined arch and truss action, introduced metal components, and ultimately gave way to all‐metal spans. Below, we trace this evolution from Palladio’s sketches to the end of the Victorian era.

Early European Innovations: Palladio’s Kingpost & Queenpost

In 1570, Andrea Palladio published Four Books on Architecture, presenting the first formal descriptions of wooden trusses—specifically the Kingpost and Queenpost. Each used a central vertical member to anchor angled braces and horizontal chords, forming rigid triangles. Despite this early documentation, few timber truss bridges appeared in Europe until the 18th century, and then primarily in forested regions like Switzerland. Builders lacked both the economic incentive and the technical confidence to erect large timber spans, so these early designs remained largely academic sketches rather than functional crossings.

American Pioneers: Burr, Howe, and Pratt

By the late 1700s, the fledgling United States needed quick, economical bridges to link growing road and canal networks. Timber was plentiful, and the iron industry was still nascent. Visionaries such as Timothy Palmer and Louis Wernwag experimented with arch-supplemented trusses, but Theodore Burr formalized the concept in 1806 with the first widely adopted patented system—a wooden truss reinforced by a continuous arch.

Later, in 1840, William Howe introduced a “combination truss” that married timber diagonals under compression with metal tension rods for verticals. This innovation simplified construction and maintenance. Just four years after Howe, Caleb and Thomas Pratt reversed those force patterns: diagonals acted in tension, and verticals handled compression. The Pratt truss foreshadowed the steel‐dominated bridges of the following century.

A quick look at key milestones underscores this rapid progress:

YearInnovatorDesignPatent or Publication1570Andrea PalladioKingpost & QueenpostFour Books on Architecture1806Theodore BurrBurr Arch TrussU.S. Patent1820Ithiel TownTown Lattice TrussU.S. Patent1840William HoweHowe TrussU.S. Patent1844Caleb & Thomas PrattPratt TrussU.S. Patent

The Era of Covered Bridges in America

As wooden trusses became commonplace, builders recognized that exposure to rain, snow, and UV drastically shortened member life. To protect the structural timber, many bridges were enclosed in barn-like coverings. These covered bridgesnot only shielded chords and braces from weathering but also provided lateral bracing against wind loads. By the mid‐19th century, covered wooden truss bridges dotted rural roads, often lasting three to four decades before major repairs—significantly longer than their unprotected counterparts.

Transition from Wood to Metal and Hybrid Structures

Toward the late 19th century, the economics of iron and steel shifted the balance. Advances in metallurgy made metal trusses lighter, stronger, and cheaper to produce at scale. Combination trusses—like Howe’s metal-rod enhancements—served as a bridge between wood and iron, but by 1900, purely wooden truss bridges were largely superseded. Steel offered longer spans, reduced maintenance, and improved fire resistance, relegating timber to pedestrian crossings and historic restorations in the years that followed.

The Most Common Wooden Truss Designs and Their Characteristics

Wooden truss bridges feature a range of patterns tailored to different spans, loads, and build methods. From the straightforward Kingpost to the intricate Town lattice, each design offers unique trade-offs in material use, load capacity, and assembly complexity. Below, we’ll profile the dominant truss types, note their typical span ranges and load capacities, and outline pros and cons for quick comparison. For a broader overview, see this guide to different types of wood bridges.

Kingpost Truss

Kingpost Truss diagram

  • Span Range: up to ~30 feet
  • Load Capacity: light pedestrian and non-motorized loads
  • Pros:
    • Simplest configuration—ideal for do-it-yourself or small community projects
    • Requires minimal timber and fasteners
  • Cons:
    • Not suitable for vehicular traffic
    • Limited redundancy—failure of the central post is critical

Queenpost Truss

Queenpost Truss diagram

  • Span Range: up to ~50 feet
  • Load Capacity: light vehicles (e.g., golf carts, maintenance vehicles)
  • Pros:
    • Doubles the span of a Kingpost with only an additional post
    • Straightforward geometry speeds up fabrication
  • Cons:
    • Diagonals carry higher stresses, demanding precise joinery
    • Still not ideal for heavy-load or high-traffic bridges

Howe Truss

Howe Truss diagram

  • Span Range: up to ~150 feet
  • Load Capacity: light to medium vehicular traffic
  • Pros:
    • Metal tension rods allow easy in-field adjustments
    • Diagonal timber members work efficiently under compression
  • Cons:
    • Steel components require corrosion protection
    • Differential material behavior can complicate maintenance

Pratt Truss

Pratt Truss diagram

  • Span Range: 100–200 feet
  • Load Capacity: medium vehicles, including light trucks
  • Pros:
    • Efficient use of iron or steel in tension diagonals
    • Well-suited to longer spans and heavier loads
  • Cons:
    • Higher material costs for metal members
    • Compression forces in verticals may require larger section sizes

Warren Truss

Warren Truss diagram

  • Span Range: 75–250 feet
  • Load Capacity: moderate vehicular and pedestrian loads
  • Pros:
    • Equilateral triangular pattern distributes forces uniformly
    • Fewer verticals reduce construction and inspection points
  • Cons:
    • Longer panels can experience noticeable deflections
    • Joint nodes are critical stress points needing careful detailing

Town Lattice Truss

Town Lattice Truss diagram

  • Span Range: typically 50–100 feet per lattice section
  • Load Capacity: pedestrian and light vehicular use
  • Pros:
    • High redundancy—load is shared across numerous planks
    • Simplified fabrication with repetitive plank layout
  • Cons:
    • Time-intensive installation of multiple fasteners
    • Heavier structure due to overlapping members

Other Variants (e.g., Camelback, Multiple-Span)

For longer or more specialized crossings, hybrids like the camelback (combining arch profiles with straight chords) or multi-span assemblies linked by piers extend timber’s reach. These bespoke designs can achieve greater spans but demand advanced engineering, stricter tolerances, and detailed upkeep plans.

Selecting the right truss pattern hinges on balancing span requirements, load demands, aesthetic goals, and maintenance capacity. By aligning these factors with one of the proven designs above, you’ll create a wooden bridge that’s not only structurally sound but also cost-effective and visually appealing.

Choosing the Right Wood: Species and Preservation Treatments

Selecting the right timber is the first step toward a durable, safe wooden truss bridge. Timber choices affect not only structural performance—strength, stiffness, load capacity—but also long-term maintenance and resistance to decay. Local availability, cost, and environmental impact all play a part in your decision. Equally important are preservative treatments that protect against moisture, insect attack, and fungal decay, ensuring your bridge lasts decades with minimal intervention.

Below, we explore the most common species used in bridge building, compare key preservative systems, and outline application methods. We also cover protective coatings and scheduling routine re-treatments. For in-depth technical guidance, see these wood preservation guidelines.

Key Wood Species for Bridge Construction

Different species bring unique combinations of strength, weight, and natural durability. Here’s a quick comparison:

SpeciesModulus of Elasticity (psi)Density (lb/ft³)Natural DurabilityTypical Use CasesDouglas Fir1,900,00034Moderate (heartwood)Spans up to medium vehicular loadsSouthern Yellow Pine1,600,00042Low–ModerateLocal supply areas, budget projectsTropical Hardwoods (e.g., Ipe, Teak)2,100,00050–60High (natural oils)High-moisture sites, premium bridges

Douglas Fir offers an excellent strength-to-weight ratio and is widely available in North America. Southern Yellow Pine works well where budgets are tight and heavy loads aren’t critical. For bridges in very wet or insect-prone environments, tropical hardwoods provide natural decay and pest resistance, albeit at higher cost and with potential import considerations.

Preservative Treatment Options

Preservatives extend service life by penetrating the wood and creating a toxic environment for decay organisms. The two main categories are:

• Oil-Borne Preservatives (e.g., creosote, pentachlorophenol):
– Deep penetration in sapwood and heartwood
– Excellent long-term protection
– Environmental concerns and stricter handling regulations

• Water-Borne Preservatives (e.g., CCA, ACQ):
– Lower toxicity to applicators
– Good fixation in cell walls
– Slightly reduced penetration depth compared to oil-borne

Oil-borne systems excel in exterior, ground-contact components, but they require careful containment and disposal. Water-borne treatments are more environmentally friendly and easier to handle, making them a common choice for pedestrian bridges and deck timbers.

Application Methods: Pressure Treatment & Incising

Achieving uniform preservative distribution depends on proper application:

  1. Pressure Treatment
    • Timber is loaded into a pressure cylinder.
    • A vacuum removes air from cell cavities, then preservative is forced in under high pressure.
    • Quality checks include retention level tests and cross-section penetration analysis.

  1. Incising
    • Small, closely spaced incisions are cut into refractory species (e.g., Southern Yellow Pine).
    • These channels enhance preservative absorption in dense heartwood.
    • Inspections verify incision depth and distribution before treatment.

Safety considerations include operator training, protective equipment, and compliance with EPA and state regulations. Regular audits of chemical storage and applicator logs ensure consistent results.

Protective Coatings and Routine Re-treatments

Even treated timber benefits from a surface barrier against UV, rain, and freeze-thaw cycles. Recommended coatings include:

  • Penetrating oil finishes (e.g., tung oil blends) for a natural look
  • Acrylic or polyurethane deck coatings for high-traffic decks
  • UV-resistant stains that emphasize wood grain

Establish a maintenance schedule:

  • Reapply clear oils every 2–3 years in exposed areas
  • Recoat pigmented stains or deck sealants every 4–6 years
  • Inspect and touch up fasteners or cut ends annually to prevent unnoticed decay

By matching species, preservative, and coating to your site conditions—and by committing to a clear maintenance plan—you’ll protect both the structural integrity and beauty of your wooden truss bridge for generations to come.

Engineering Principles Behind Wooden Truss Bridges

Wooden truss bridges owe their efficiency to fundamental principles of structural engineering. At the core, trusses transform applied loads into axial forces—either tension or compression—within individual members. This direct transfer minimizes bending moments, allowing the bridge to span greater distances with less material. Designers must account for a variety of loads, from the structure’s own weight (dead load) to moving traffic (live load) and environmental influences like wind, snow, or seismic events. Complying with codes such as AASHTO LRFD ensures that safety factors and load combinations are properly addressed, resulting in robust and reliable bridges.

Truss geometry plays a pivotal role in force distribution. By arranging members into interconnected triangles, the design guarantees that all internal forces act along member centroids, simplifying analysis and sizing. Basic calculations for axial forces often start with simple statics: for instance, a concentrated live load (P) applied at midspan in a symmetric two‐panel truss yields a diagonal force approximated by:

T = (P * L) / (2 * h)

where:

  • T is the axial force in the diagonal member,
  • L is the total span,
  • h is the truss depth.

This formula guides initial member sizing, but real bridges require more detailed finite-element models and load combinations prescribed by standards.

Beyond static analysis, dynamic effects like wind-induced vibrations or vehicle-induced impact factors can amplify forces in a truss. Designers address these by introducing dynamic load allowances—percentages added to static loads—to guard against fatigue and resonance. Let’s explore these topics in more detail.

Load Distribution in Truss Geometry

Triangles form the backbone of truss action. When a load presses on the deck, reaction forces travel through the bridge deck into the bottom chord, up through diagonals and verticals, and finally into the top chord before reaching the supports. Each member sees only axial force: tension members stretch, while compression members shorten. This clear load path avoids complex bending and shear stresses, allowing for straightforward sizing based on:

F = A * f_allow

where:

  • F is the axial force from analysis,
  • A is the required cross-sectional area,
  • f_allow is the allowable stress for the timber species.

By calculating F for each member under various loading scenarios, engineers assign dimensions that satisfy both strength and serviceability criteria.

Static vs. Dynamic Load Considerations

Static loads include the bridge’s dead weight and uniformly or point-applied live loads from pedestrians or vehicles. These forces remain relatively constant once applied. Dynamic loads, however, vary with time. Wind gusts can induce uplift or lateral sway, while passing vehicles generate impact loads that momentarily exceed static live loads by a prescribed factor—often 33% for highway bridges under AASHTO LRFD. Seismic events introduce additional lateral demands, necessitating checks for unbalanced forces. Designing for dynamic conditions typically involves multiplying static load effects by dynamic amplification factors, ensuring members and connections withstand short-term spikes without failure.

Span Limitations and Member Optimization

Every material has limits. Wood’s susceptibility to buckling under compression and its finite tensile capacity set practical span boundaries for truss bridges. For long spans, increasing truss depth (h) or selecting engineered timber (e.g., glulam) boosts geometric stiffness and allows slender chords. Slenderness ratio (λ) guides compression member design:

λ = (K * L_eff) / r

where:

  • K is the effective length factor (linked to end conditions),
  • L_eff is the unsupported length,
  • r is the radius of gyration.

Lower λ values reduce buckling risk. Tapering chords—using larger sections near supports and smaller near midspan—matches material to the force diagram, economizing wood while keeping the structure safe.

Environmental and Live Load Factors

In addition to typical vehicular or pedestrian loads, environmental forces shape truss design. Snow accumulation can impose uniform or drifting loads; design guides often specify an equivalent uniform load (e.g., 30 psf) plus drift allowances. Wind uplift on covered or open trusses generates negative pressures that tension top chords. Designers also consider live-load distribution factors, ensuring pedestrians or maintenance vehicles don’t overload a single panel. By combining dead, live, snow, wind, and impact loads per code requirements, engineers develop worst-case scenarios and verify that all members and connections maintain adequate safety margins under every conceivable condition.

Construction and Assembly Techniques for Wooden Truss Bridges

Building a wooden truss bridge calls for both precise workmanship and clever logistics. Whether you choose to factory-prefabricate major truss modules or to assemble everything on site depends on factors like site access, weather, and budget. Once components are ready, the erection phase hinges on well-planned falsework, scaffolding, and lifting equipment to ensure safety and alignment. Throughout the process, joint fabrication—be it traditional carpentry or modern connector plates—must meet tight tolerances. Finally, a rigorous quality control program with moisture checks and non-destructive testing guarantees that each member and connection performs as intended over the bridge’s service life.

Prefabrication vs. On-site Assembly

Prefabrication shifts much of the work into a controlled shop environment. Truss panels can be laid flat on stable jigs, allowing craftsmen to cut joints or set connector plates under ideal conditions. This accelerates on-site installation—modules arrive ready to lift—and reduces exposure to rain or extreme temperatures. However, transporting large sections may require oversize permits, and minor site adjustments can become tricky if panels don’t perfectly match as-built conditions.

On-site assembly, by contrast, builds each member in place. This method offers flexibility: carpenters can fine-tune dimensions to account for foundation irregularities or unexpected obstructions. Yet it demands skilled labor working outdoors, and weather delays can stretch the schedule. Many contractors blend approaches by prefabricating subassemblies—like half-trusses—and completing final connections in the field.

Erection Methods: Falsework, Scaffolding, and Cranes

A stable network of falsework and scaffolding underpins a safe erection process. Falsework—temporary supports made from timber or steel—carries truss loads until the structure becomes self-supporting. Scaffolding provides access to mid-span connections, enabling workers to install diagonal braces or top chords at height.

With under-structure in place, lifting equipment—ranging from mobile cranes to gin poles—hoists prefabricated modules into position. Gin poles, simple single-leg derricks, offer a cost-effective solution for small to medium spans when crane access is limited. After each section is lifted, crews secure temporary bracing before proceeding to the next segment. This sequence repeats until panels meet at field splice points, where final bolting or pegging unites the truss into a continuous system.

Joint Fabrication: Carpentry vs. Connector Plates

Joint quality dictates how effectively loads transfer between members. Traditional joinery employs mortise-and-tenon or tenon-and-peg connections, which, when cut precisely, lock under compression and can last centuries if kept dry. These joints demand masterful carpentry: mortises must be square, tenons straight, and pegs driven without splitting the timber.

Modern connector plates and gusset systems expedite assembly. Galvanized steel plates, stamped with tooth patterns, press into wood faces to lock members together without complex cuts. Bolted gusset plates clamp chords, diagonals, and verticals at single nodes. While these methods speed construction and simplify inspections, they introduce dissimilar materials requiring corrosion protection and may concentrate stresses at the metal-wood interface.

Quality Control Measures During Construction

Ensuring long-term performance starts with solid quality control. Key measures include:

• Dimensional Tolerances: Verify member lengths, chord camber, and panel point locations within ±1/8 inch to maintain proper truss geometry.
• Moisture Content Checks: Use a wood moisture meter to confirm that timber falls within the specified range (typically 12–15%). Overly wet members risk shrinkage and joint loosening.
• Non-Destructive Testing (NDT): Employ ultrasonic or resistance-drilling tools to detect internal decay, voids, or delamination in critical members and connections.

A written inspection log should track every check, noting deviations and corrective actions. By combining precise fabrication, careful erection, and systematic quality assurance, builders ensure a wooden truss bridge stands strong—and beautiful—for decades to come.

Maintaining and Inspecting Wooden Truss Bridges for Longevity

Regular maintenance and inspections are the cornerstone of keeping a wooden truss bridge safe and serviceable well beyond its expected life span. A structured program helps catch minor issues—like a loose bolt or early-stage rot—before they grow into major repairs. By combining scheduled assessments with targeted moisture control and clear decision criteria for repairs, you can extend your bridge’s service life and protect your investment.

Routine inspections focus on three goals: identifying structural damage, assessing moisture-related decay, and ensuring connections perform as intended. When paired with preventative measures—such as proper drainage design and protective flashings—a disciplined maintenance plan reduces the likelihood of unexpected closures or costly overhauls. Below we outline recommended inspection intervals, key items to check, moisture management tactics, and guidelines for when to repair versus replace bridge components.

Inspection Intervals and Qualified Personnel

Most timber bridge standards recommend a comprehensive inspection every 2–5 years. Bridges in harsh climates or carrying heavier loads benefit from the shorter end of that range. Between full inspections, a quick visual survey—ideally following extreme weather events—helps spot urgent issues.

Qualifications for inspectors should include:

  • A professional engineer or certified bridge inspector with timber experience
  • Knowledge of wood decay mechanisms and timber grading
  • Access to basic testing tools (moisture meters, binoculars, flashlights)

Detailed reporting is crucial. Each inspection should produce a record of findings, action items, and follow-up dates. Photos or sketches highlighting problem areas support clear communication between owners, engineers, and maintenance crews.

Common Structural Issues to Look For

During each inspection, pay close attention to:

  • Member Condition
    • Cracks or splits at high-stress points
    • Permanent deflections or sagging chords
    • Latewood–earlywood separation (delamination)
  • Connection Integrity
    • Loose, corroded, or missing bolts and nails
    • Wear at pin or hinge locations
    • Deterioration of metal connector plates
  • Moisture Ingress and Rot
    • Dark stains, soft spots, or a spongy feel underfoot
    • Water pooling in deck cavities or at supports
    • White or brown rot in exposed end grains
  • Insect and Fungal Activity
    • Frass (sawdust-like residue) indicating carpenter ants or termites
    • Fungal fruiting bodies (mushrooms or conks) on timbers
    • Tiny exit holes in weathered areas

Recording each symptom’s location and severity helps prioritize maintenance tasks. Minor surface cracks may only need sealing, while extensive rot often requires member replacement.

Moisture Management Best Practices

Controlling water is the single most effective way to slow decay. Key strategies include:

  • Drainage Design
    • Provide gaps between deck boards for rapid runoff
    • Install end caps on chords and posts to prevent capillary suction
  • Surface Protections
    • Use flashing or drip edges under deck overhangs
    • Apply UV-resistant stains or sealants on all exposed surfaces
  • Site-Level Features
    • Sloping approach slabs and wing walls to divert runoff
    • Grading terrain to keep standing water away from abutments

Regularly clear debris from deck gaps, flashing, and drainage channels. Even small leaf accumulations can trap moisture against wood and accelerate decay.

Repair vs. Replacement Strategies

Deciding whether to repair a member or replace it entirely depends on the damage’s extent and location:

  • Reinforcement (Repair)
    • Minor cracks: inject epoxy consolidants or install steel splints
    • Loose connections: tighten bolts, swap out lag screws, or add washers
    • Surface rot less than one-quarter the depth: cut out and patch with compatible wood or epoxy
  • Replacement
    • Full-depth rot or insect damage in critical compression members
    • Excessive deflection that cannot be corrected by shimming or sister-beaming
    • Irreparable damage to key joints (mortise-and-tenon/connector plates)

When replacing timbers, match the original species, grade, and preservative treatment to maintain uniform performance. Document all changes in as-built drawings and log material certificates for future reference.

By adhering to these inspection intervals, checking a clear list of critical items, managing moisture at every level, and making informed repair-versus-replace decisions, you’ll ensure your wooden truss bridge stands strong—and in service—decade after decade.

Key Benefits of Using Wooden Truss Bridges

Wooden truss bridges stand out for their combination of performance, sustainability, and visual warmth. When engineered and maintained correctly, these structures deliver long service lives—often surpassing 75 years—while keeping end-of-life disposal simple and eco-friendly. Below, we explore the four core advantages that make timber trusses a compelling choice for many crossings, from hiking trails to low-volume roadways.

Environmental Benefits and Carbon Footprint

Timber is a renewable resource that sequesters carbon throughout its life cycle. Compared to steel or concrete, wooden trusses typically generate a fraction of the greenhouse-gas emissions during production and installation. A recent overview of truss-bridge strengths highlights this advantage, noting that wood’s embodied carbon can be as little as one-fifth of equivalent steel structures.

MaterialApprox. Embodied Carbon*Wooden Truss20 kg CO₂e per m²Steel Truss100 kg CO₂e per m²Precast Concrete80 kg CO₂e per m²

*Values are illustrative averages. See detailed strengths overview for more context.

When the bridge reaches the end of its service life, timber members can be reused in landscaping, furniture, or biomass energy—options that aren’t available for steel or reinforced concrete.

Aesthetic Appeal and Cultural Significance

Few bridge types blend so harmoniously with natural settings. The rhythmic triangles of a wooden truss evoke traditional craftsmanship and draw attention to the material’s texture and grain. In parks or heritage sites, this visual quality enhances visitor experience and reinforces a sense of place.

Actionable idea: install LED uplighting along the bottom chord or interpretive signage at each portal to showcase the bridge’s engineering story. These small touches turn a functional crossing into a memorable landmark.

Economic Advantages for Small to Medium Spans

For spans up to 100 feet, timber trusses often cost 20–30% less than comparable steel options. Savings stem from:

  • Local availability of standard timber sections
  • Reduced foundation demands, thanks to lighter dead loads
  • Quicker assembly with modular prefabrication

Example cost comparison for a 60-foot footbridge:

  • Wooden Truss: $200 per square foot (materials + labor)
  • Steel Truss: $260 per square foot
  • Precast Concrete Beam: $240 per square foot

These figures can vary regionally, but they illustrate how timber can deliver attractive upfront budgets and predictable maintenance costs.

Modular Repair and Adaptability

Wooden truss bridges lend themselves to modular design. Individual panels or chords can be prefabricated off-site, transported easily, and bolted into place. If a member deteriorates, crews can unbolt and swap just that element—without closing the entire span or performing heavy welding.

This adaptability also enables future upgrades: adding stiffening rods, retrofitting protective metal plates, or even widening a cycle path by inserting new truss segments. The plug-and-play nature of timber modules keeps downtime and labor costs to a minimum.

By combining low embodied carbon, timeless aesthetics, budget-friendly construction, and straightforward repairability, wooden truss bridges deliver a lifecycle advantage few alternatives can match. Whether you’re planning a new pedestrian trail or restoring a historic crossing, timber trusses offer a balanced solution that stands the test of time.

Potential Drawbacks and Challenges of Wooden Truss Bridges

Wooden truss bridges excel in sustainability and aesthetics, but they also bring unique challenges that owners and designers must weigh. Compared to steel or concrete structures, timber trusses demand a higher level of ongoing care and may face performance limits in certain applications. Additionally, navigating building codes and preservation guidelines can complicate both new construction and historic rehabilitations. Below, we delve into these drawbacks in detail.

Maintenance Intensity and Long-term Costs

Timber’s organic nature means that a wooden truss bridge typically requires more frequent inspections and treatments. Industry guidance recommends a full condition assessment every 2–5 years, with minor maintenance (sealant touch-ups, fastener tightening) at least annually. Over a 50-year service life, maintenance and inspection budgets often total 40–60% of the initial construction cost. For example, on a 60-foot pedestrian truss built for $150,000, owners might spend an additional $60,000–$90,000 on preservative reapplications, structural repairs, and routine labor. By comparison, a steel truss of similar span might incur only 20–30% of its initial cost in maintenance over the same period, thanks to lower susceptibility to rot and simpler inspection protocols.

Susceptibility to Fire, Decay, and Pests

Wood is inherently vulnerable to fire, UV degradation, insect infestation, and fungal decay. Mitigation measures can reduce these risks but add to project budgets:

  • Fire-retardant coatings: $0.50–$1.50 per square foot, reapplied every 5–7 years
  • UV-resistant sealants or stains: $0.75–$2.00 per square foot, refreshed every 3–5 years
  • Insect-resistant treatments (borate, CCA): $1.00–$2.50 per square foot, usually applied during initial pressure treatment
  • Monitoring and remediation: annual inspections with spot treatments ($1,000–$3,000 per event)

Despite these precautions, the residual risk of localized rot or pest outbreaks remains higher than for inorganic materials, making vigilant maintenance non-negotiable.

Span and Load Capacity Constraints

While modern engineered wood products extend timber’s reach, wooden truss bridges still lag behind steel in maximum span and load capacity. A typical species-grade wooden truss spans up to 250 feet under optimal conditions, whereas steel trusses routinely exceed 500 feet with similar cross-sections. Load-wise, a heavy-duty steel truss can support Class HS-20 highway loads (72,000-pound tractor-trailers) across medium spans, whereas a comparable wooden structure may require significant over-engineering or be limited to light vehicles and pedestrian traffic.

Bridge TypeMax Span (Approx.)Typical Load CapacityWooden Truss200–250 feetPedestrian to light vehicularSteel Truss500–800 feetHeavy vehicular and rail traffic

Designers often need to compromise on span length or invest in hybrid solutions (e.g., timber–steel combinations) to meet higher capacity requirements.

Regulatory and Permit Considerations

Building or rehabilitating wooden truss bridges can trigger complex regulatory reviews. New timber crossings must comply with bridge design codes (AASHTO LRFD, state DOT supplements) and environmental regulations for in-stream work. Historic wooden bridges face additional scrutiny under local preservation ordinances and the Secretary of the Interior’s Standards if tax credits or grants are pursued. Permitting timelines can extend 6–12 months for projects involving:

  • Wetland and watercourse impacts (Army Corps Section 404)
  • Historic resource assessments and community consultations
  • Fire safety code reviews when wooden structures are open to the public

Understanding these hurdles early—and budgeting for specialist consultants—helps avoid costly delays or redesigns. For a balanced overview, see this assessment on pros and cons of truss bridge structures.

Rehabilitation of Historic Wooden Truss Bridges and Preservation Standards

Rehabilitating a historic wooden truss bridge involves more than swapping out decayed timbers—it’s about preserving a community’s built heritage while upgrading safety and performance. The Secretary of the Interior’s Standards for Rehabilitation guide this balance by promoting repair over replacement, retaining defining features, and ensuring that any new work is reversible and compatible with the original structure. For the full list of standards, visit the National Park Service’s page on the Secretary of the Interior’s Standards for Rehabilitation.

Key Rehabilitation Standards for Wooden Bridges

When tackling a historic wooden truss bridge, four of the ten Standards are most critical:

  1. Standard 2 – Retain Historic Character:
    Keep distinctive truss profiles, original joinery patterns, and portal details intact. Replace only what’s absolutely deteriorated.
  2. Standard 6 – Repair Rather Than Replace:
    Consolidate minor rot with epoxy fillers, sister new timber onto existing members, or install steel splints beneath chords—avoiding wholesale removal.
  3. Standard 9 – Compatibility of New Additions:
    Any supplemental bracing, protective fire coatings, or hidden steel tension rods should match the bridge’s scale, finish, and visual rhythm.
  4. Standard 10 – Reversibility of Interventions:
    Design interventions so future conservators can remove modern elements (like concealed damp-proof membranes) without harming original timbers.

Balancing Historic Integrity with Modern Needs

Updating load capacity or meeting current code requirements doesn’t mean stripping away history. Start by assessing which members can carry extra reinforcement and where hidden steel plates or tension rods can be discreetly installed. For example, you might:

  • Reinforce a lower chord by bolting a slim glulam sister beam on the underside.
  • Add stainless steel tie rods through existing mortise holes to boost tension capacity.
  • Use custom-fabricated steel gusset plates that match the original rivet patterns.

These careful upgrades preserve visual authenticity while delivering the safety factors engineers require under AASHTO LRFD.

Funding, Permits, and Tax Incentives

Certified rehabilitation projects can tap into several funding streams:

  • Federal Historic Preservation Tax Incentives Program (Internal Revenue Service)
  • Transportation Alternatives Program (FHWA) grants for active-transportation bridges
  • State Historic Preservation Office (SHPO) rehabilitation grants
  • National Trust for Historic Preservation small-grant awards
  • Community Development Block Grants for rural or underserved areas

Early coordination with local preservation officers and state DOTs helps align permit reviews—such as Section 106 historic assessments and Army Corps of Engineers waterway permits—so your project stays on track.

Example Project Workflow

  1. Preliminary Assessment
    – Document existing conditions with photos, sketches, and a timber condition survey.
    – Perform a structural analysis to identify high-stress members.
  2. Preservation Plan
    – Map out which members will be repaired, reinforced, or replaced.
    – Specify compatible materials (species, millwork profiles, connector hardware).
  3. Permitting and Funding
    – Submit historic resource reports to SHPO.
    – Apply for tax credits and grant funding; secure Army Corps and local municipality approvals.
  4. Material Procurement
    – Source seasoned, preservative-treated timber matching the original species.
    – Fabricate any custom steel plates or tension rods.
  5. On-Site Rehabilitation
    – Erect scaffold and perform selective removal of deteriorated wood.
    – Carry out epoxy consolidations, sister-beam installations, and steel reinforcements.
    – Reapply protective coatings to match historic finishes.
  6. Final Inspection and Documentation
    – Have a qualified engineer certify load-carrying capacity under current codes.
    – Update as-built drawings and maintenance logs, ensuring reversibility of new work.

Following these steps and standards ensures that your rehabilitation honors the bridge’s history while meeting modern safety and load requirements—so the craftsmanship of the past can continue to serve communities for decades to come.

Modern Innovations and the Future of Wooden Truss Bridges

Wooden truss bridges are stepping into a new era, driven by advanced materials, smarter designs, and a stronger emphasis on sustainability. Modern engineered wood products replace raw sawn members, combining timber’s natural benefits with factory-controlled precision. Hybrid structures blend timber with steel or concrete to push spans and loads beyond conventional limits. Meanwhile, digital tools—from Building Information Modeling (BIM) to real-time sensor networks—are reshaping how engineers design, build, and maintain these bridges. Finally, lifecycle assessments and green building certifications ensure that each crossing contributes positively to environmental goals.

Engineered Timber Products Transforming Bridge Design

Glued laminated timber (glulam), cross-laminated timber (CLT), and laminated veneer lumber (LVL) are rewriting the rulebook for timber bridges. Unlike solid-sawn members, these engineered products: • Offer consistent mechanical properties and fewer defects
• Allow for deeper sections and longer spans without excessive dead load
• Can be prefabricated in complex shapes, including curves and tapered beams

For instance, glulam’s high bending strength and dimensional stability make it ideal for top chords, while CLT panels serve as deck and diaphragm elements. LVL provides slender, high-strength options for tension members. By selecting the right engineered product for each truss component, designers achieve lighter structures with cleaner aesthetics and predictable performance.

Hybrid Wood–Steel and Wood–Concrete Trusses

To meet ambitious span or load requirements, engineers are combining timber with steel or concrete. Typical hybrid strategies include:

  • Integrating steel tension rods or cables into a predominantly wooden truss to boost load capacity
  • Encasing timber chords in concrete shells for added stiffness and fire protection
  • Using steel gusset plates and connectors to simplify joint fabrication and maintenance

These composites play to each material’s strengths: wood’s renewability and appearance, steel’s tensile prowess, and concrete’s compressive resilience. Hybrid trusses have recently appeared in park bridges exceeding 200 feet, where all-wood designs would demand prohibitively deep sections. This synergy unlocks new possibilities for elegant, sustainable spans.

Digital Design and Monitoring Technologies

Digital tools now underpin every phase of a modern wooden truss bridge project. During design, BIM platforms allow multidisciplinary teams to coordinate geometry, connection hardware, and preservative treatments in a shared 3D model. Finite-element analysis refines member sizes by simulating load cases, buckling behavior, and dynamic effects.

Once in service, structural health monitoring systems—comprising strain gauges, accelerometers, and moisture sensors—stream real-time data to maintenance teams. Alerts flag unusual strain patterns or moisture spikes, prompting targeted inspections before visible damage occurs. This proactive approach shifts the maintenance paradigm from reactive to preventive, minimizing downtime and repair costs.

Sustainability Certifications and LCA

As timber bridges gain traction, project teams pursue environmental credentials to validate their green credentials. Lifecycle assessments (LCA)

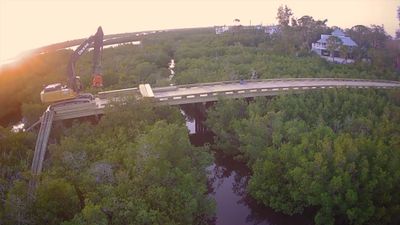

Vehicular Bridge under construction

Copyright © 2025 All Timber Structures, Inc. - All Rights Reserved.

Contact ATS: (321) 800-9150

This website uses cookies.

We use cookies to analyze website traffic and optimize your website experience. By accepting our use of cookies, your data will be aggregated with all other user data.

DeclineAccept
